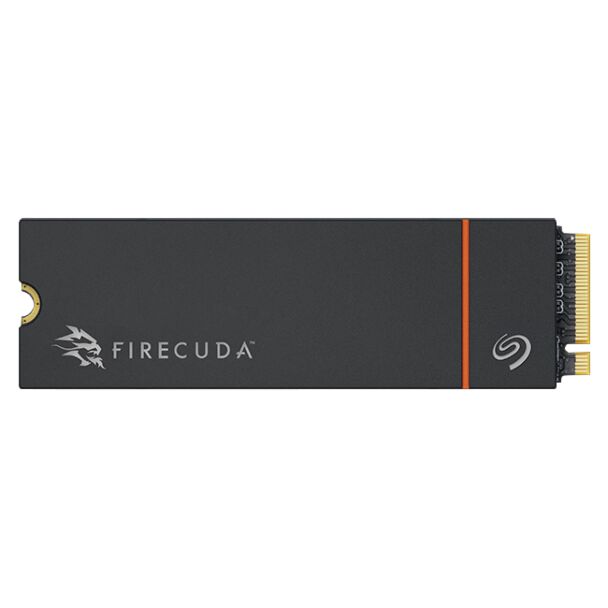

Seagate ZP2000GM3A073 FireCuda 530R SSD Heatsink 2TB
Model
ZP2000GM3A073
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | Available in 24 Hours |
West Melbourne (Pickup) | Available in 24 Hours |
$249.00
Specifications
General Data
| Model Number | ZP2000GM3A073 |
| Capacity | 2 TB (2000 GB) |
| Interface | PCIe Gen4 x 4 NVMe 1.4 |
| NAND Flash Memory | 3D TLC |
| Form Factor | M.2 with heatsink (Please verify that your system provides enough space for installation. The FireCuda 530 with heatsink exceeds dimensions of a standard M.2 2280 form factor. Heatsink is pre-installed and should not be removed as it can damage the SSD.) |
| System Requirements | M.2 (M key) slot, PCIe® G4 x 4 interface (backwards compatible with PCIe G3 interface) Windows ® 11, Windows 10 Linux |
| What's Included | Seagate® FireCuda® 530R SSD with Heatsink |
Performance
| Sequential Read (Max, MB/s), 128 KB | 7400 (Fresh out of box (FOB) performance obtained on newly formatted drive. Performance may vary based on SSD’s firmware version, system hardware, and configuration. Performance based on CrystalDiskMark v.7.0.0 x 64 on Windows 10 host with PCIe Gen4 motherboard.) |
| Sequential Write (Max, MB/s), 128 KB | 6900 (Fresh out of box (FOB) performance obtained on newly formatted drive. Performance may vary based on SSD’s firmware version, system hardware, and configuration. Performance based on CrystalDiskMark v.7.0.0 x 64 on Windows 10 host with PCIe Gen4 motherboard.) |
| Random Read (Max, IOPS), 4 KB QD32 T16 | 1,300,000 (Fresh out of box (FOB) performance obtained on newly formatted drive. Performance may vary based on SSD’s firmware version, system hardware, and configuration. Performance based on CrystalDiskMark v.7.0.0 x 64 on Windows 10 host with PCIe Gen4 motherboard.) |
| Random Write (Max, IOPS), 4 KB QD32 T16 | 1,300,000 (Fresh out of box (FOB) performance obtained on newly formatted drive. Performance may vary based on SSD’s firmware version, system hardware, and configuration. Performance based on CrystalDiskMark v.7.0.0 x 64 on Windows 10 host with PCIe Gen4 motherboard.) |
Endurance/Reliability
| Total Bytes Written (TB) | 2400 |
| Mean Time Between Failures (MTBF, Hours) | 1,800,000 |
| Rescue Data Recovery Services (Years) | 3 (Rescue Data Recovery Services not available in all countries.) |
| Warranty, Limited (Years) | 5 |
Power Management
| Active Power, Average (W) | 8.6 |
| Idle Power PS3, Average (mW) | 28 |
| Low Power L1.2 mode (mW) | <5 |
Temperature Rating
| Temperature, Operating Internal (°C) | 0 to 70 |
| Temperature, Non-Operating (°C) | -40 to 85 |
| Shock, Non-Operating: 0.5ms (Gs) | 1500 |
Special Features
| TRIM | Yes |
| S.M.A.R.T. | Yes |
| RoHS Compliance | Yes |
Physical
| Length (mm/in, max) | 80.85 mm / 3.183 in |
| Width (mm/in, max) | 24.22 mm / 0.953 in |
| Height (mm/in, max) | 11.10 mm / 0.437 in |
| Weight (g/lb) | 49 g / 0.108 lb |
