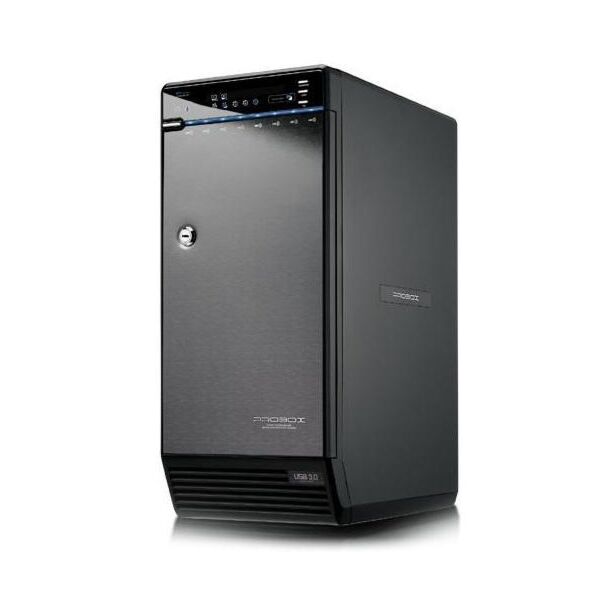

Hotway H8R2-SU3S2 8 Bay 3.5" USB 3.0+ eSATA Raid Enclosure

Hotway H8R2-SU3S2 is a 8 Bay enclosure for 3.5' SATA hard disk drive. It has hardware embedded raid.

• Support all brand of 3.5" SATA I / II / III hard disk drive up to 12TB* per drive, and up to 8 x 12TB*. (Not compatible with 4Kn Native Drives)
• Support Hard Drive transfer rate up toSATA III Speed (on USB 3.0)
• Hardware Raid controller built-in on board
• Compatible with Macbook USB 3.0
• Transfer rate up to 5.0Gbps via USB 3.0
• Transfer rate up to 3.0Gbps via eSATA (SATA II Speed)
• Power Sync: Power off in synchronization with PC
• Forced Convection Process
• Smart Fan function
  • Thermal-Sensor built-in
  • Auto & Manual mode
  • 3 level of speed
• One button interface selection: Switch USB 3.0 or eSATA interface by pressing one button
• Raid Mode Support
  • Raid 0 (Spanning) JBOD
  • Raid 0 (Stripping)
  • Raid 50
  • 2 x Raid 0 (Spanning) JBOD
  • 2 x Raid 5 (Striped set with distributed parity)
  • 2 x Raid 10 (Mirroring + Striping)


* 12TB Support for H8R2-SU3S2 Rev. 03 with firmware update (Lower Rev.# support up to 6TB Hard Drive Only)

Specifications

• Interface
  • USB 3.0
  • eSATA
• Supporting OS
  • Windows 7 / 8, 8.1 / 10 (32/64 bit) PC version only (GPT Partition supports total capacity more than 2TB, MBR Partition support total capacity up to 2TB only)
  • Mac OS 10.3 or later
• Power Adapter: 100V to 240V
• Dimension: 253(D) x 155(W) x 352(H) mm
• Weight: 5.0KG (excluding hard drive)
• Safety Specification: CE / FCC / Rohs
