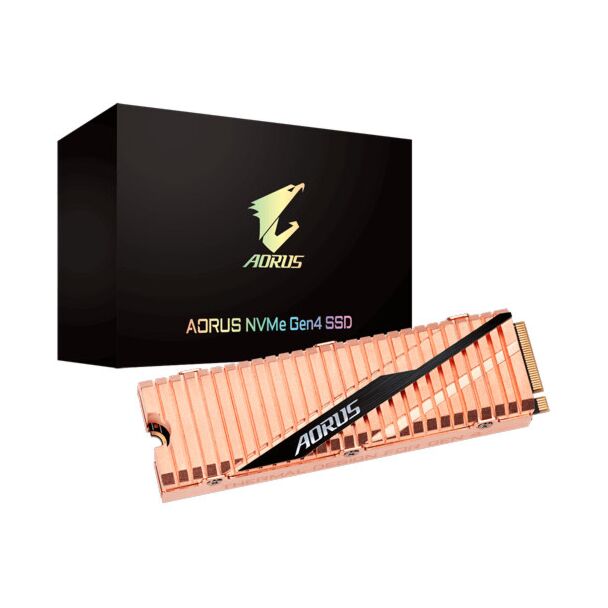

Gigabyte GP-ASM2NE6500GTTD Aorus M.2 PCIe NVMe Gen4 SSD 500GB 3D NAND

• Form Factor: M.2 2280
• Interface: PCI-Express 4.0 x4, NVMe 1.3
• Total Capacity: 500GB*
• Sequential Read Speed : up to 5000 MB/s**
• Sequential Write speed : up to 2500 MB/s**
• Wear Leveling, Over-Provision technologies
• TRIM & S.M.A.R.T supported
• Fully Body Copper Heat Spreader
• Warranty: Limited 5-years

*Note: 1GB = 1 billion bytes. Actual useable capacity may vary.
**Speeds based on internal testing. Actual performance may vary.

• Interface
  PCI-Express 4.0x4, NVMe 1.3
• Form Factor
  M.2 2280
• Total Capacity
  500GB
• Warranty
  Limited 5-years or 850TBW
• NAND
  3D TLC Toshiba BiCS4
• External DDR Cache
  DDR4 512MB
• Sequential Read speed
  Up to 5000 MB/s
• Sequential Write speed
  Up to 2500 MB/s
• Random Read IOPS
  up to 400k
• Random Write IOPS
  up to 550k
• Dimension (W x H x L)
  80.5 x 11.4 x 23.5 mm
• Mean time between failure (MTBF)
  1.77 million hours
• Power Consumption (Active)
  Average: R : 5.9W; W : 4.5W
• Power Consumption (Idle)
  13.21mW
• Temperature (Operating)
  0°C to 70°C
• Temperature (Storage)
  -40°C to 85°C
• Note
  * Test system configuration: configuration may vary by models, we will choose the latest platform for verification.
  * Performance may vary based on SSD's firmware version and system hardware & configuration. Sequential performance measurements based on CrystalDiskMark v.5.1.2 and I0meter 1.1.0.
  * Speeds based on internal testing. Actual performance may vary.
  * TBW (Terabyte Written):Terabytes Written" is the total amount of data that can be written into an SSD before it is likely to fail.
  * 1GB = 1 billion bytes. Actual useable capacity may vary.
  * 5 years or 850TBW, whichever comes first.
